Flame u16MCC MIDI CC-to-CV

Flame u16MCC MIDI CC-to-CV

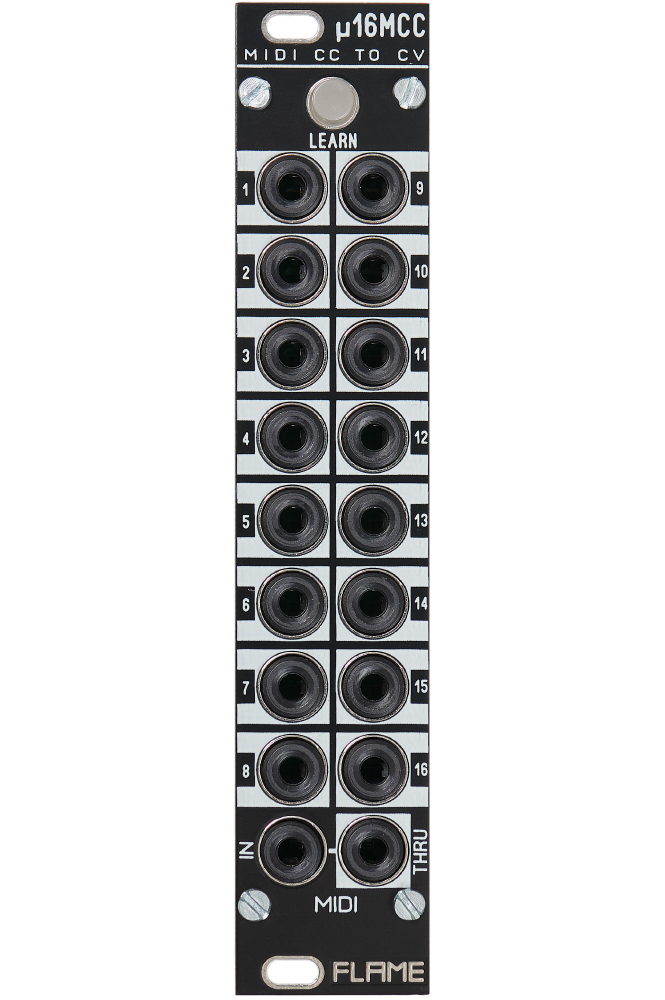

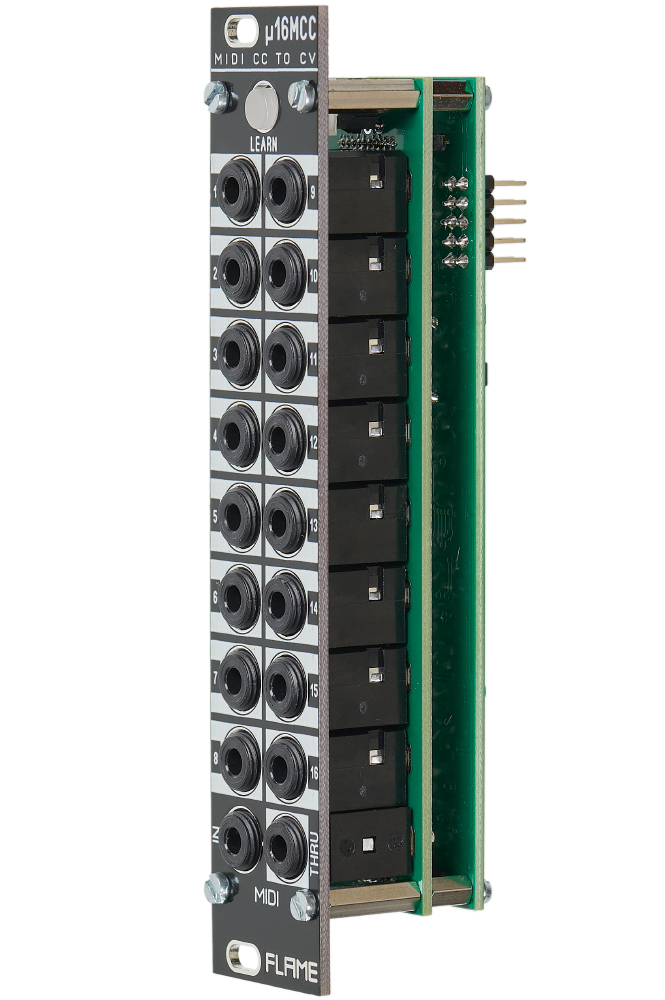

The Flame µ16MCC is a compact MIDI interface, which converts received MIDI control change commands on 16 outputs into CV voltages between 0 and + 5V. The resolution of the data bytes is 7bit. The outputs each have a passive lowpass filter, which smoothes the output voltages.

Each of the outputs can be assigned a separate control change number between 0 and 127 on its own MIDI channel. The module is programmable via the LEARN function with a MIDI keyboard and MIDI controllers, or via SYSEX commands. Some SYSEX files with default settings already exist.

The module has two MIDI sockets (mini jacks in TRS-B standard) INPUT and THRU. The data received at MIDI-IN is forwarded via MIDI-THRU. Additional MIDI modules can then be connected there.

Features:

  • 16 ControlChange to 16 CV outputs 0..+5v
  • programmable via MIDI keyboard/DAW/computer
  • MIDI start/stop trigger outputs
  • MIDI input and THRU (TRS MIDI B standard)



Power consumption: 50mA at +12 V and 30mA at -12 V

Depth: 40mm

HP : 5
.
.

.

Article n°

  • FL16MCV

189

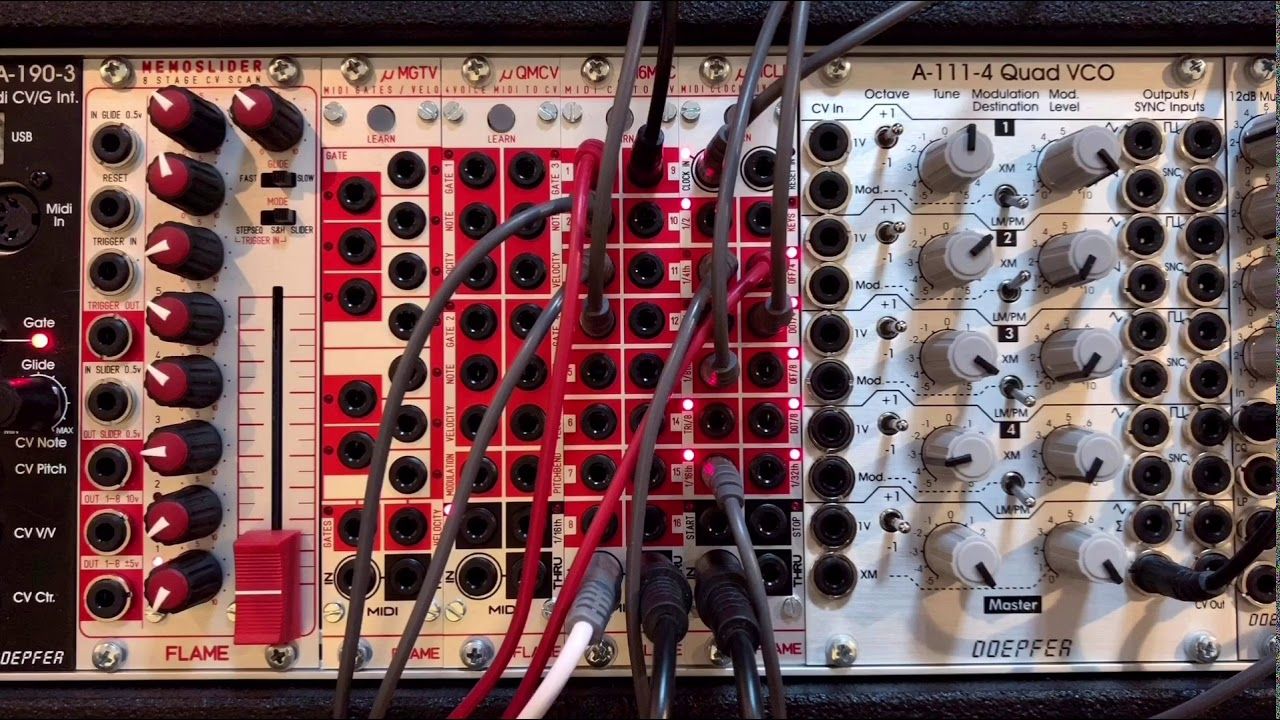

Video
