ACL - Pan Mix

ACL - Pan Mix

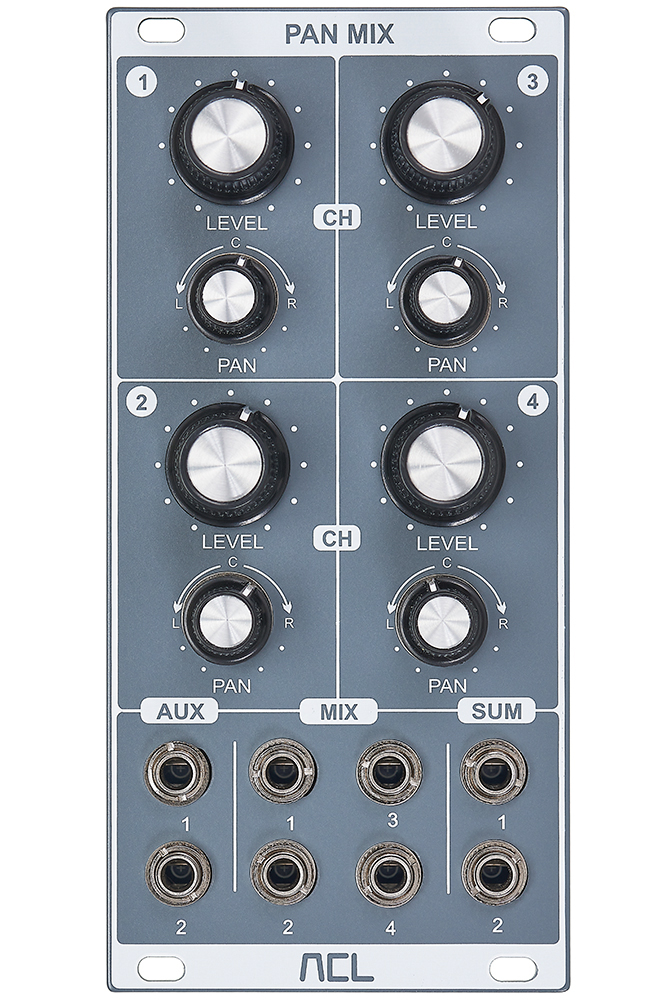

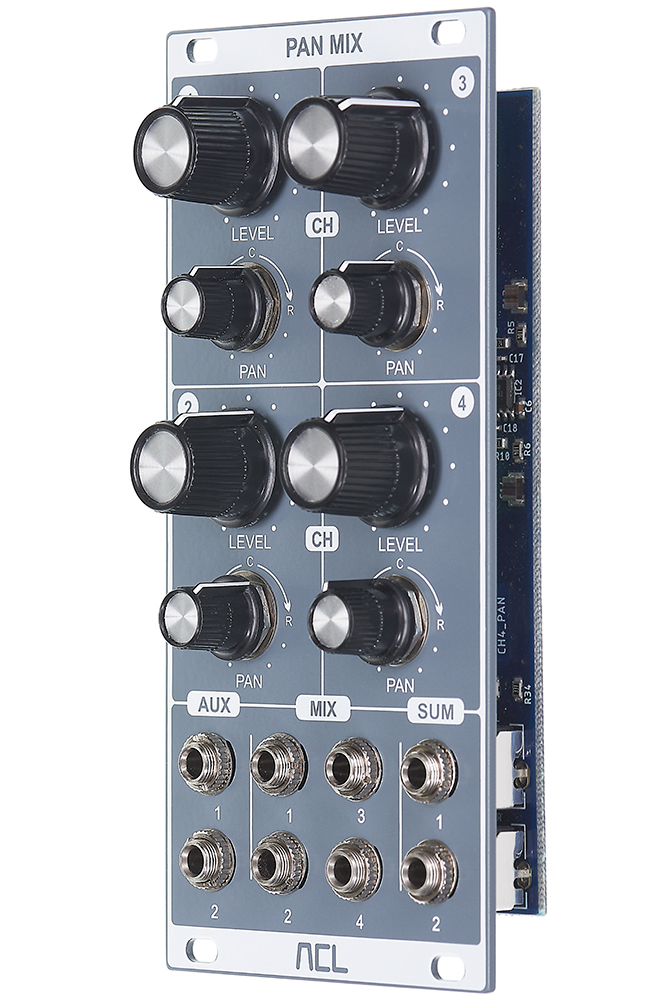

The ACL Pan Mix module mixes up to four different mono sources into a stereo output with panorama and gain control. It also includes an stereo aux input, which will be added unity gain to the sum for cascading purposes.

Features:

  • Four mono inputs
  • Stereo output
  • Stereo AUX input (two mono jacks)


Functions:

  • Mixing four mono signals together with gain and panning control into a stereo output.
  • L/R Aux inputs allow to cascade many units to form a mixer having more inputs



Power consumption:

-12V: ca. 42 mA

+12V: ca. 42 mA

HP : 12
.
.

.

Article n°

  • ACLpam

225
