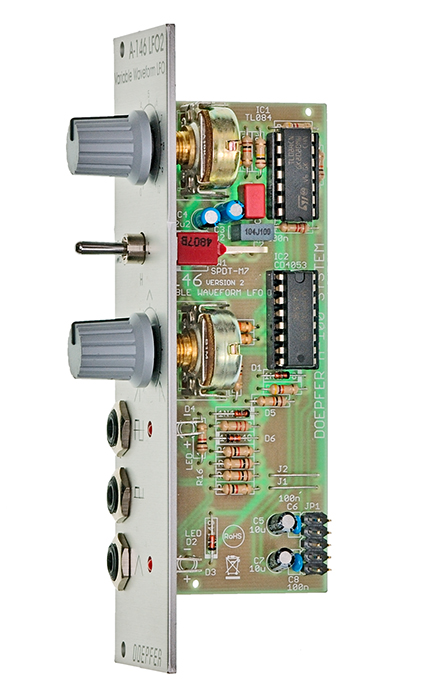

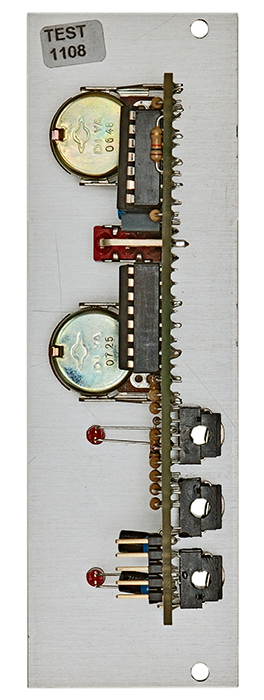

Doepfer A-146 Low Frequency Oscillator 2 / LFO 2


Module A-146 (LFO 2) is a Low Frequency Oscillator, which produces periodic control voltages over a wide range of frequencies.

The LFO can be used as a modulation source for a series of modules (for instance pulse width and/or frequency modulation of a VCO, modulation of a VCF cut-off frequency, amplitude modulation with a VCA).

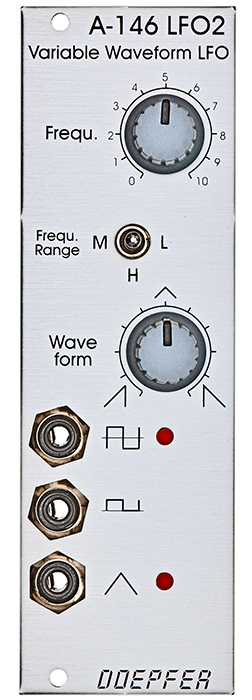

Three outputs are available, with different waveforms: sawtooth / triangle; square wave, and positive-voltage square wave. The waveform is continuously adjustable from rising sawtooth, through triangle to falling sawtooth. The same control affects the pulse width of the square wave.

A three-way switch can select one of three frequency ranges, spanning from one cycle every few minutes, at the lowest, up to audio frequency at the highest.


75€

Power consumption: 20mA at +12V and 20mA at -12V

Depth: 45mm


8 HP
