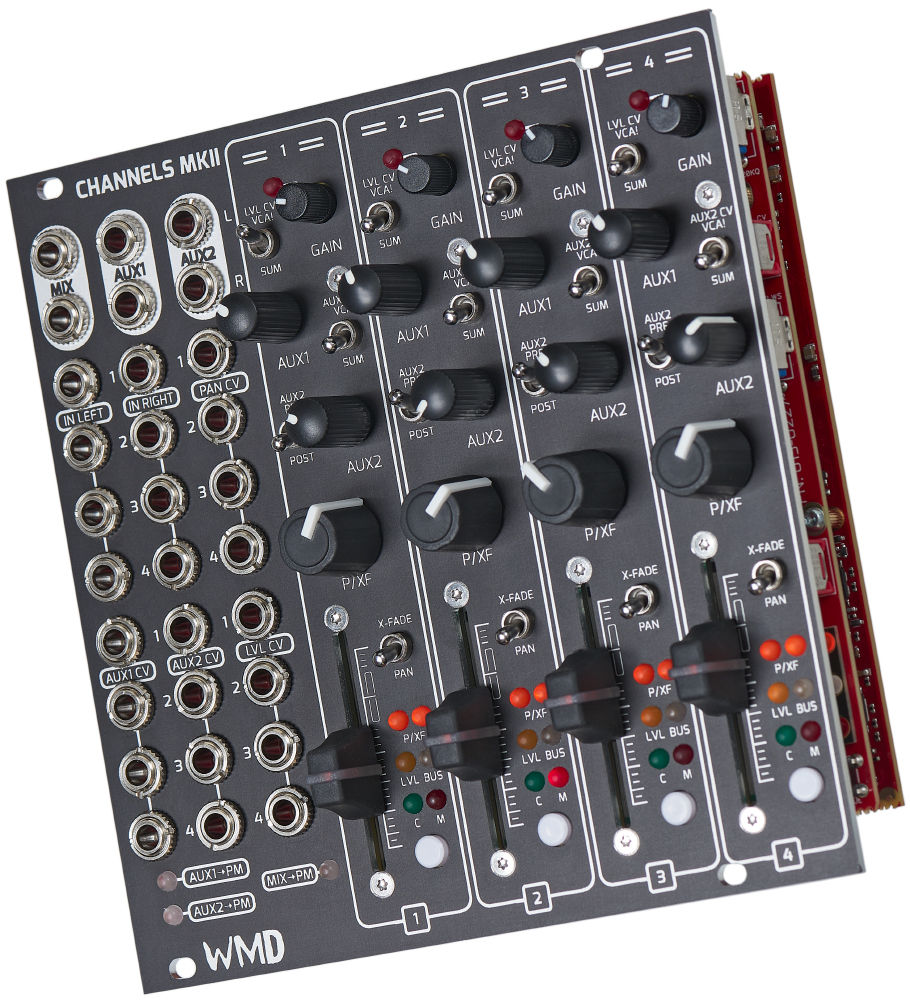

WMD PM Channels MKII


Expansion for the Performance Mixer MKII. Can also be used as a standalone four-channel mixer.

Features:

  • 4 stereo or dual mono inputs
  • 2x stereo aux
  • Soft mute per channel
  • Clip indicator on input gain control
  • Channel strips are field replaceable if a pot or fader fails
  • CV control over Pan, Level, Aux1 and Aux2
  • Channel inserts: Rear cables per channel allow for future insertable effects
  • Pan/Crossfade switch for dual mono inputs per channel (panned centre)
  • Rear headers for pre and post fader/pan outputs to DB25
  • LEVEL and AUX2 CV can be SUMmed or used as VCAs
  • AUX2 can be Pre Fade or Post Fade
  • Firmware update via connection to PM MKII
  • All functions of the PM MKII when connected as an expander (MIDI, CUE, GROUP, BUS)
    Built-in soft start on power up

569€

Depth: 36mm


24 HP
